2MHz Oscillator and Reset Button Relocated

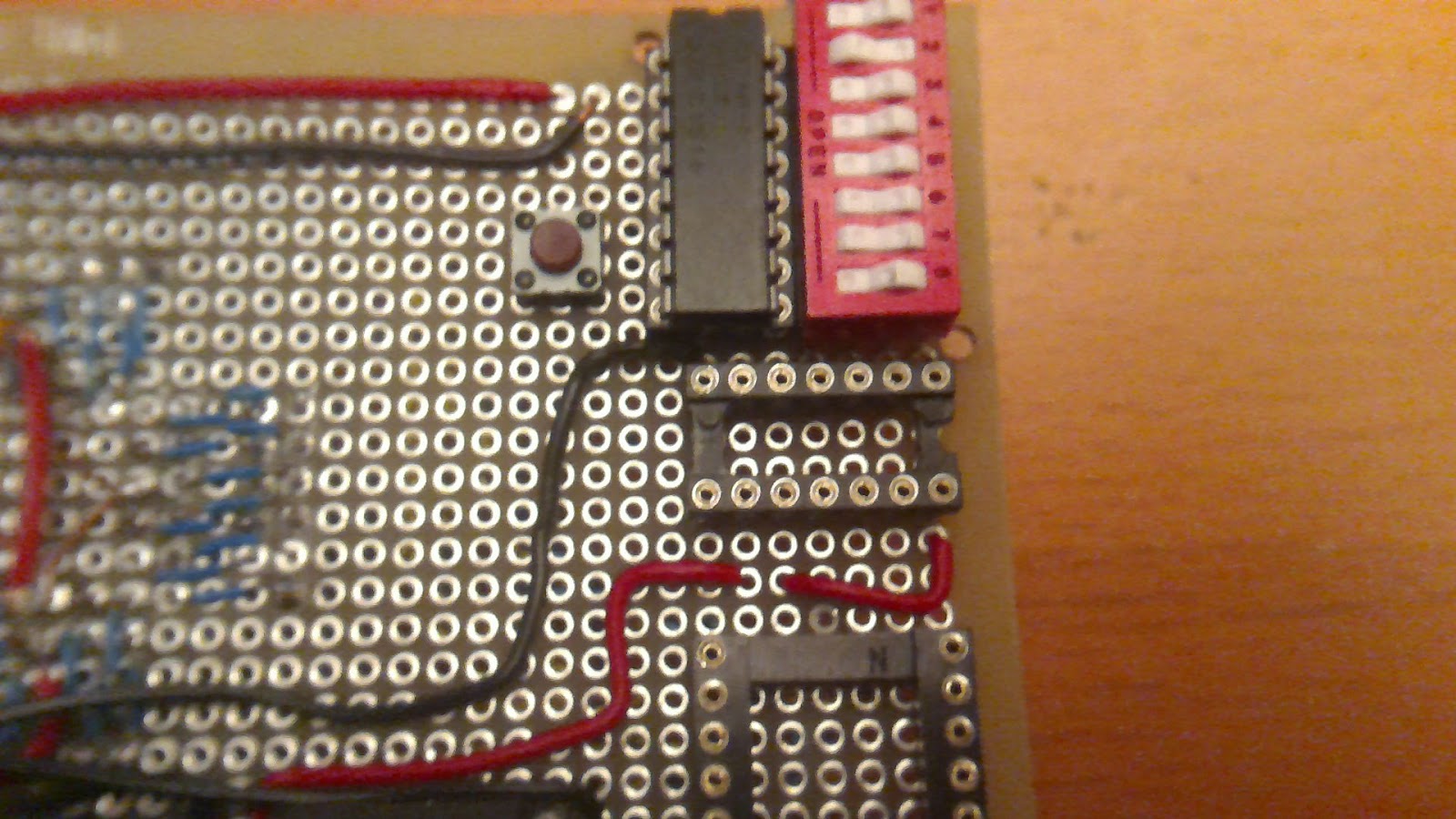

OK, I moved them. Here is the latest with the oscillator socket rotated 90 degrees. The black wire for power was long enough, but the red one was too short. Hence that extra bit of red wire:

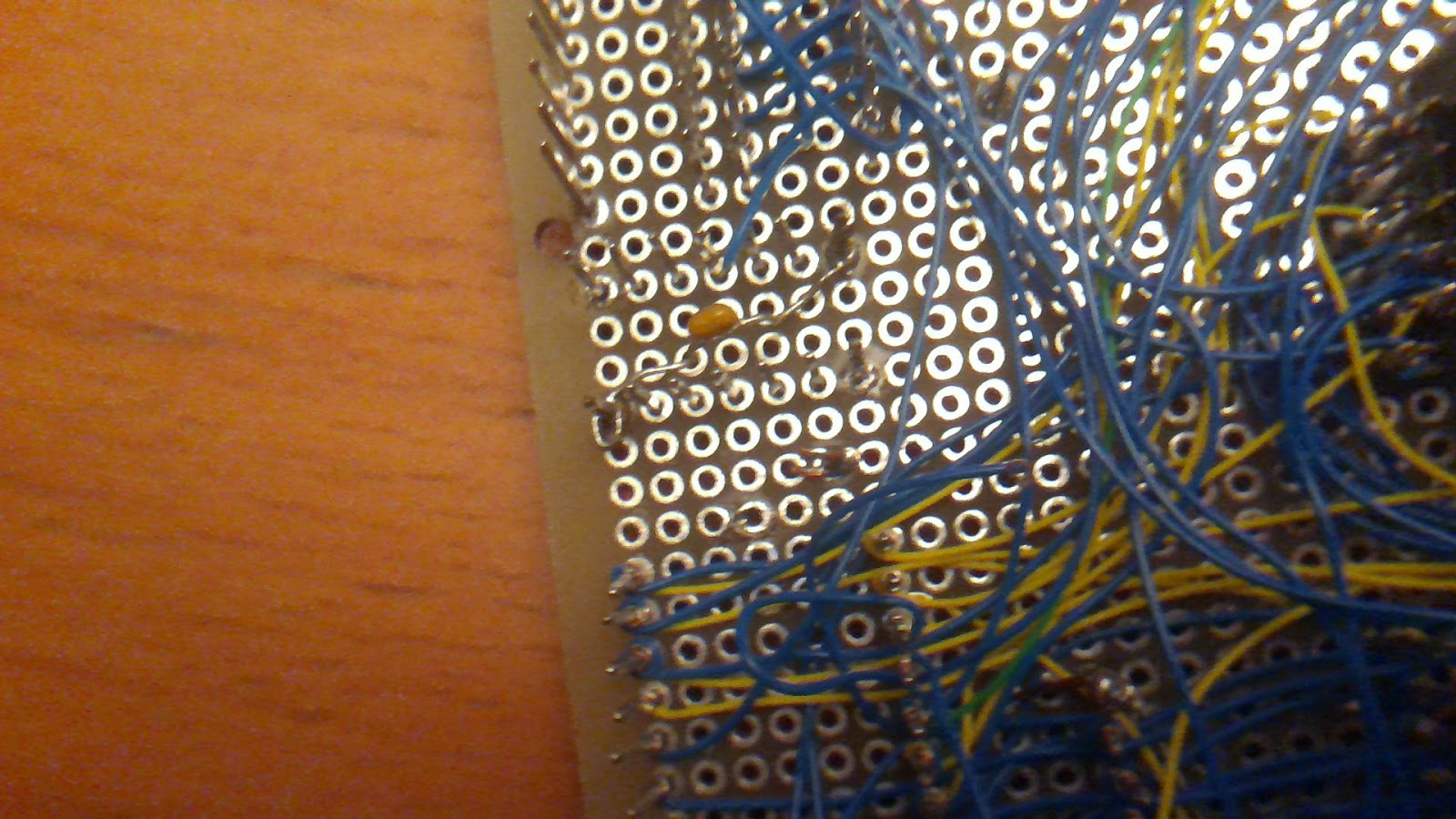

And here is the back. I put the decoupling cap in:
Now it’s time to reconnect the wire wrap and ensure once again that I can work with the flash. Then, it’s time to pop in the Z-80…..
