Diagrams To Help In Wire Wrapping

I finally got around to making diagrams of the board in OneNote. OneNote has a grid which doesn’t appear in these drawings.

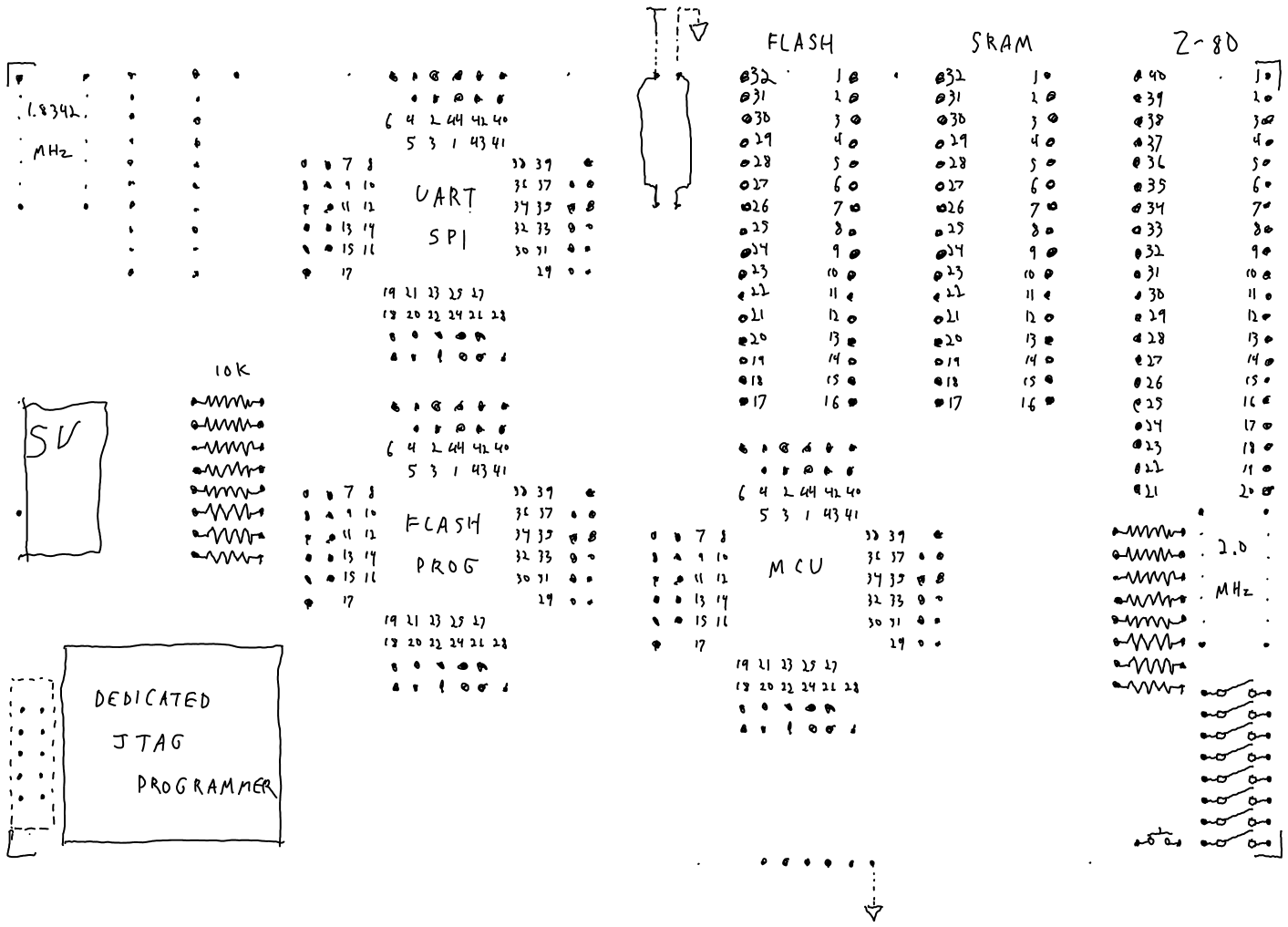

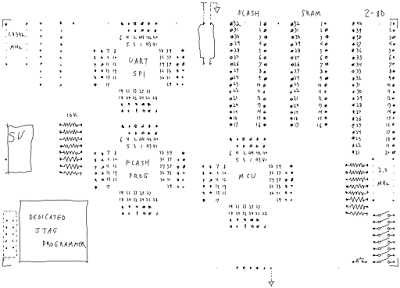

Here is the basic board:

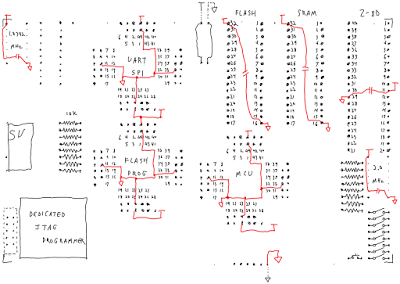

Here is the power:

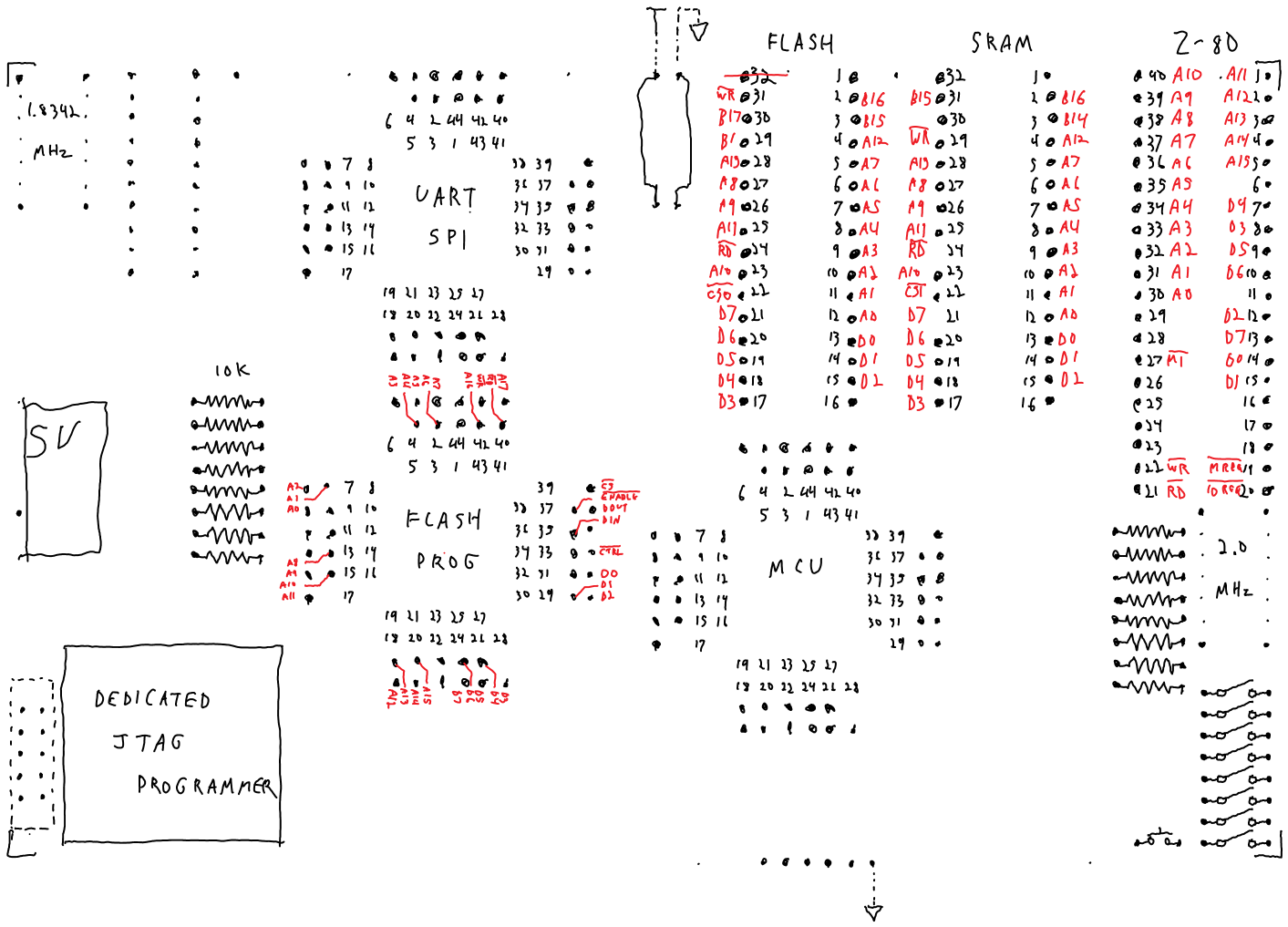

Here is the address/data/control bus:

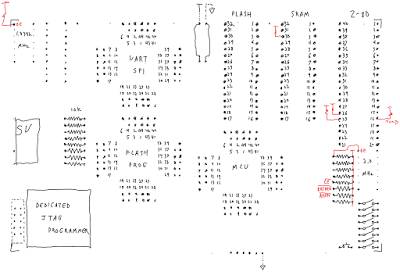

Pull-ups:

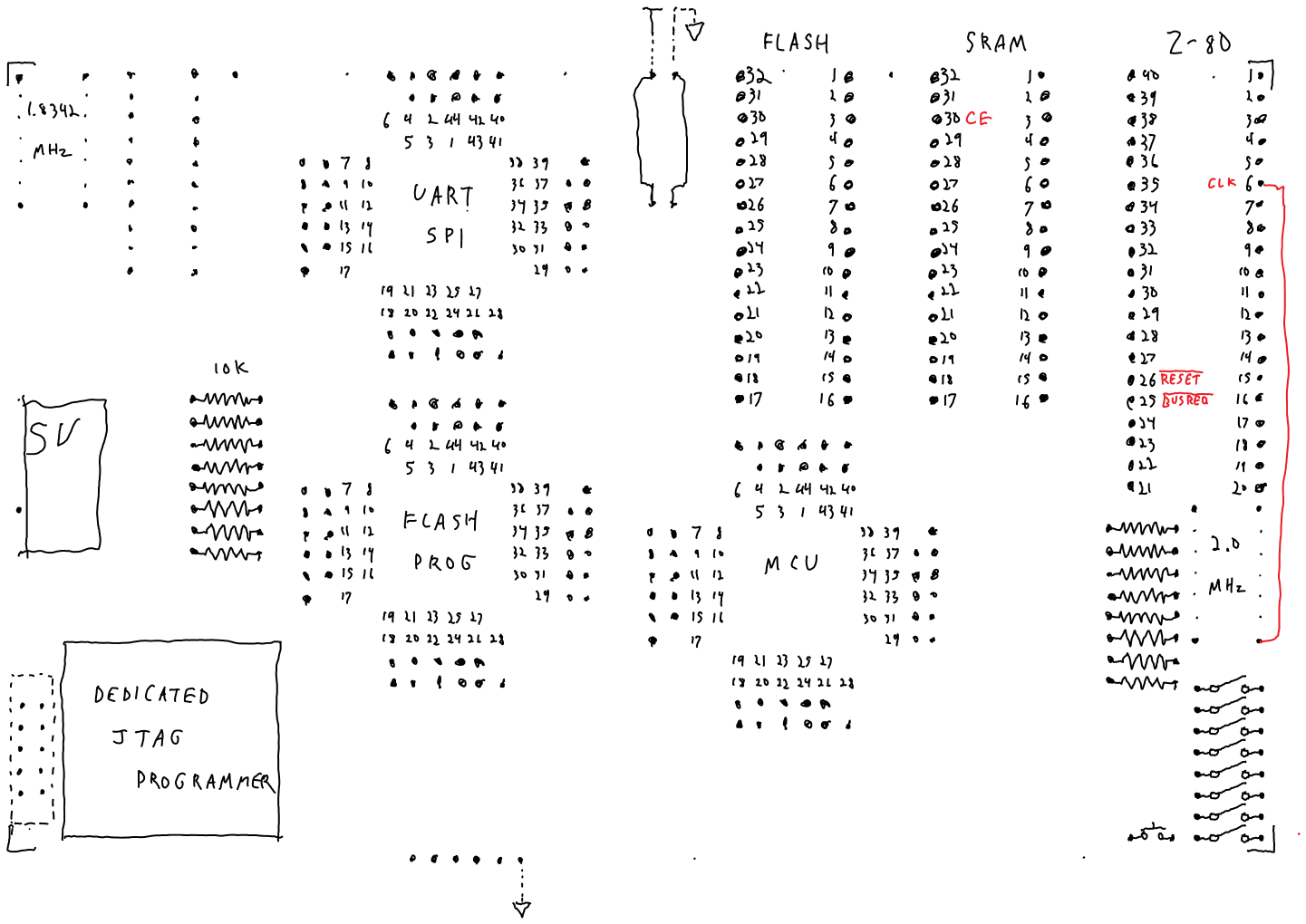

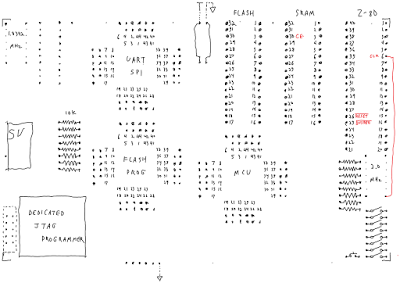

Misc connections:

These are under revision.
